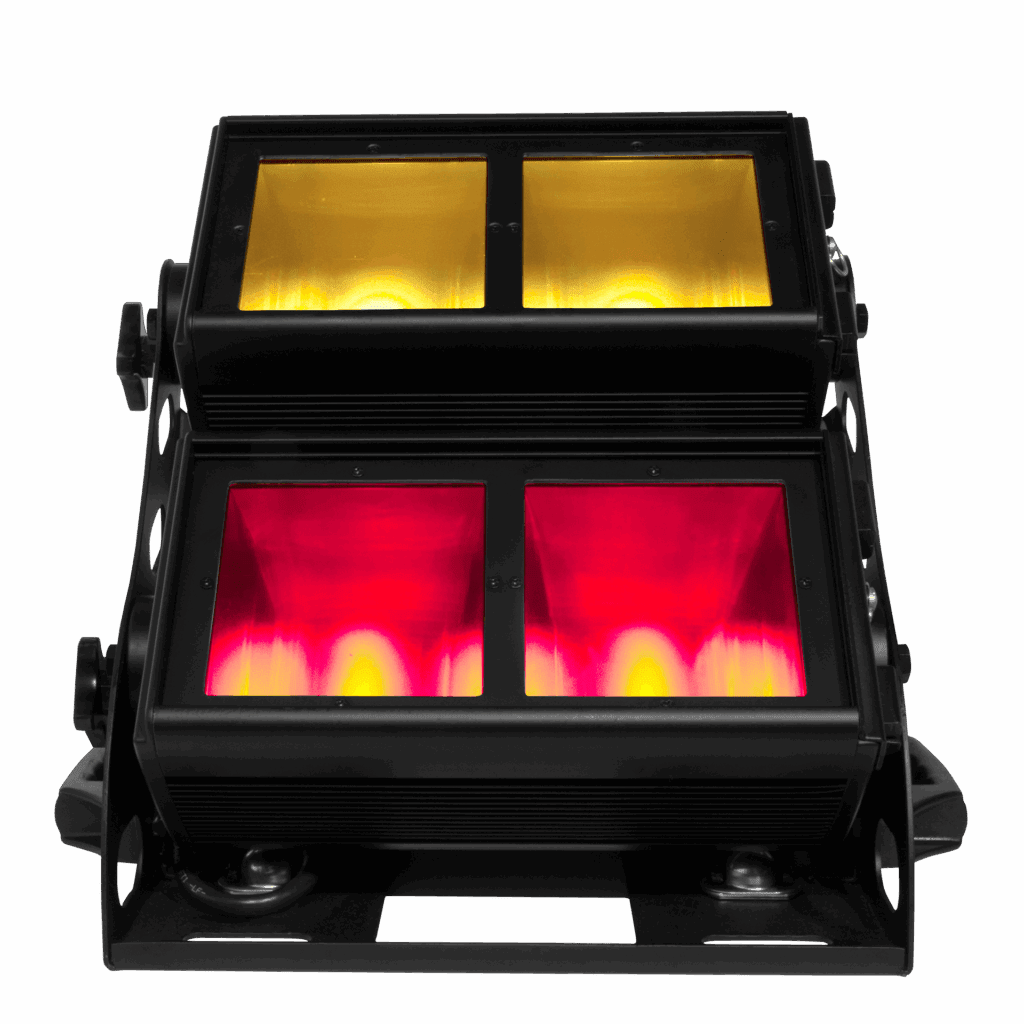

The Chauvet Ovation C-640FC is an LED cyc light for washing backdrops, cycloramas and drapes in smooth, even colour. It mixes red, green, blue, white and amber LEDs and has theatre-grade 16-bit dimming, so it fades cleanly.
Good for
- Theatre cycloramas and backdrops
- Colouring drapes and stage walls
- Concerts and prize-givings
- Scenic and set lighting
Connections
| Power | powerCON in and out (linkable) |
| DMX | 3-pin and 5-pin XLR |
How to use it
- Place the unit on the floor or rig it on a bar a metre or two from the backdrop, with a safety cable if hung.
- Angle the two heads so the light spreads evenly over the surface.
- Connect power, and run DMX from your desk if you want desk control.
- Set the DMX address and channel mode, or set a static colour on the unit’s menu without a desk.
- Fade up and adjust colour; at the end, fade down before switching off.
Tips
- Space several units along the bottom or top of a cyc for even coverage across a wide backdrop.
- A white or light backdrop shows colour best; dark drapes absorb most of it.
- The 16-bit dimming suits slow theatre fades.
Specifications
| Light source | 64 LEDs: 16 red, 16 green, 16 blue, 8 white, 8 amber |
| DMX channels | 3, 4, 5, 6, 10, 11 or 17 |
| Beam / field angle | 35° / 65° |
| Colour temperature | 2,800 to 10,000 K |
| Power | 173 W, 100 to 240 V |
| IP rating | IP20 (indoor use) |
