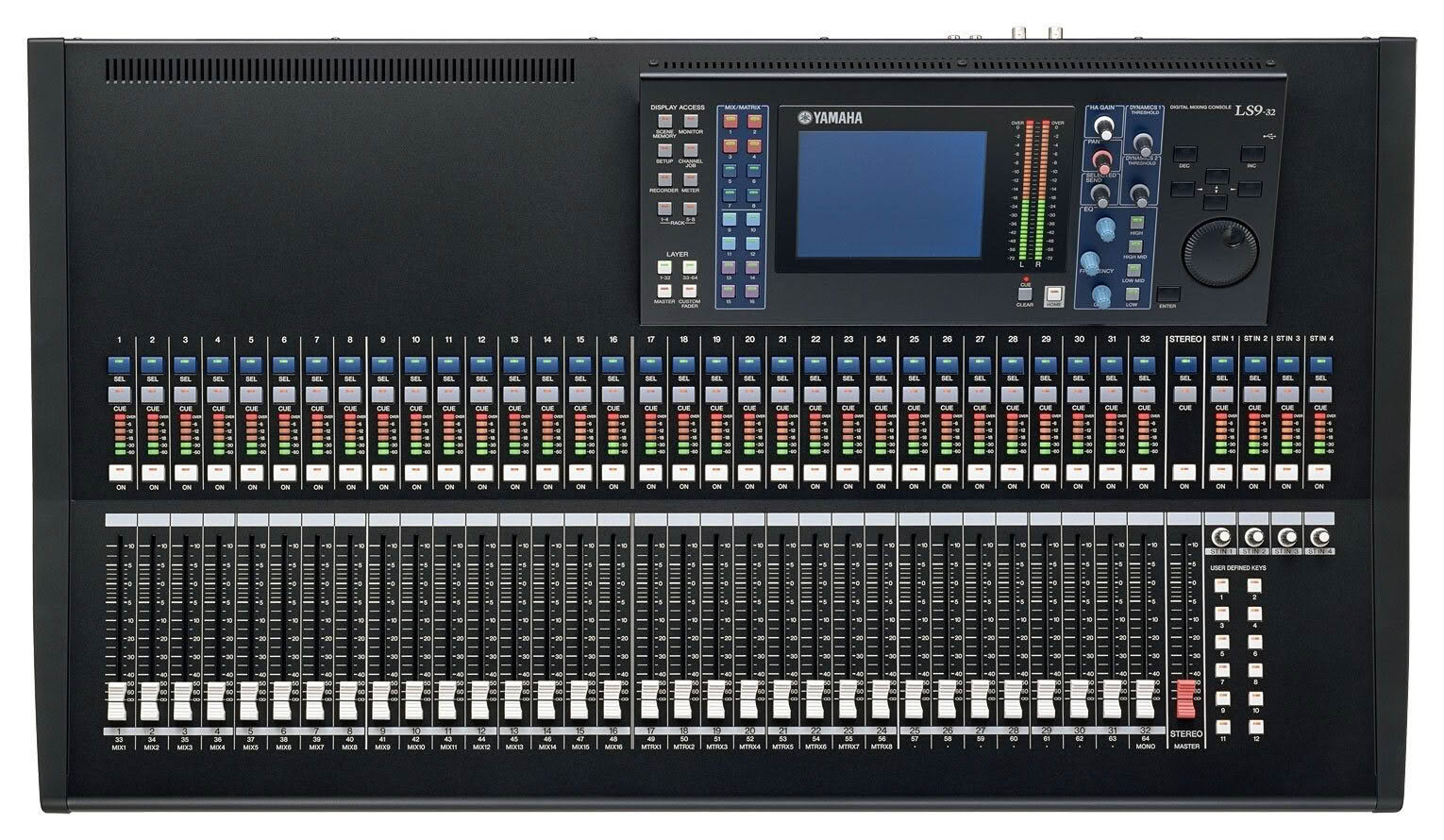

The Yamaha LS9-32 is a 32-channel digital console with motorised faders, built-in effects and scene memory. It is a proven desk for medium to large live events.
Good for
- Bands and concerts
- Medium to large corporate events
- Theatre productions
- Church and community events

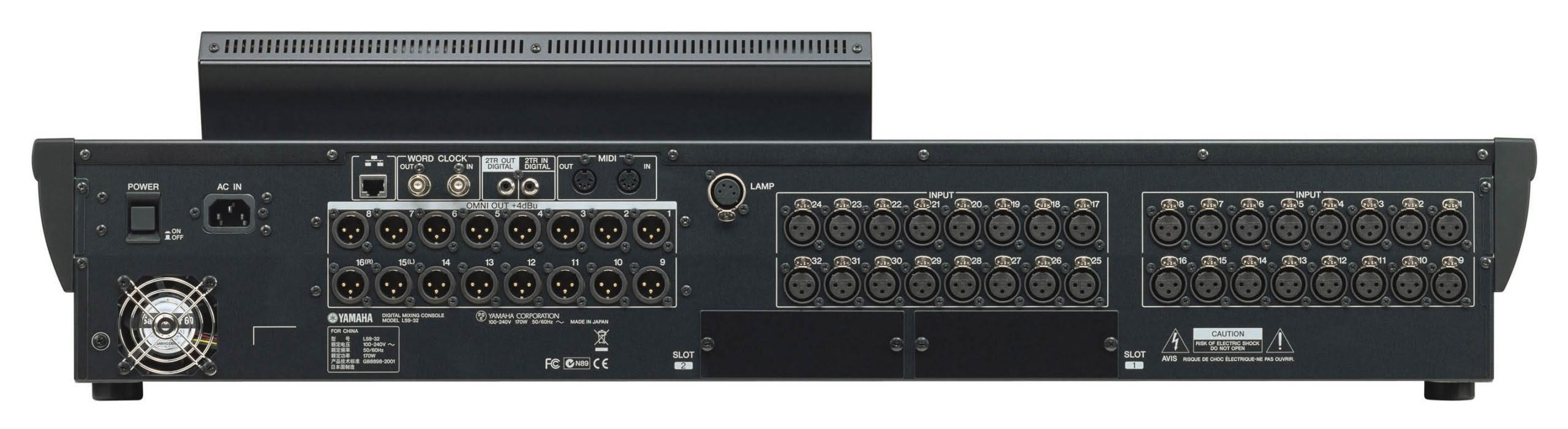

Connections
| Inputs | 32 mic/line XLR inputs plus stereo inputs |
| Outputs | 16 analogue Omni XLR outputs |
| Expansion | 2 Mini-YGDAI card slots |
| USB | USB 2-track recording and playback |
| Power | Mains power lead |
How to use it
- Connect your sources to the inputs and speakers or amps to the Omni outputs.
- Power on the console, then the speakers or amps.
- Recall a scene or start from a blank one and patch your outputs.
- Set gains and build your mix.
- At the end, turn speakers off first, then the console.
Tips
- Save your mix as a scene so you can recall it instantly.
- Use the USB recorder for background music or a stereo recording of the show.
- This desk suits an experienced operator. Ask about our simpler mixers if you are new to sound.
Specifications
| Mix channels | Up to 64 (32 local inputs) |
| Faders | 33 motorised, 100 mm |
| Busses | 16 mix, 8 matrix, stereo/mono |
| Effects | 8 virtual rack processors |
| Weight | 19.4 kg |
Questions? Not sure it will work with your system, venue or setup? Contact us, email hire@waikatosl.co.nz or call 07 834 1197 before you book.
